Fest Ticketing

Overview

Fest Ticketing is an event-ticketing backend built as a combined project for three university courses: Digital Image Processing, Machine Learning, and Mobile Programming. The FastAPI service exposes 27 endpoints for authentication, event and organizer management, and a payment flow, backed by an 11-table PostgreSQL schema. During the course window, the machine-learning thread built a face-verification proof of concept with MediaPipe FaceMesh, FaceNet, and cosine similarity; that pipeline is disabled in the current repository. The mobile client lives in a separate Flutter project.

Problem

Ticket sharing and stolen tickets are hard to catch with paper or barcode entry
The courses required integrating a machine-learning pipeline with a working backend
Three separate course assignments had to share one coherent system
The backend needed to be fast enough to verify an attendee at the gate

Goal

Build a FastAPI backend with event, organizer, auth, and payment flows
Model the domain in PostgreSQL with clean relations
Add a face-verification pipeline using pre-trained models, not a from-scratch trainer
Wire a mobile client that can register a face and present it at the gate

Role

I built the AI backend and API integration and collaborated on the API contract with the mobile team. The Flutter client is a separate project in the mobile course track. Team: Achmad Raihan Fahrezi Effendy (AI Backend + Integration) + mobile and frontend tracks

Architecture

flowchart TD
    A["Mobile client (Flutter)"] --> B["FastAPI backend"]
    B --> C["Auth endpoints"]
    B --> D["Event endpoints"]
    B --> E["Organizer endpoints"]
    B --> F["Payment endpoints"]
    C --> G[("PostgreSQL")]
    D --> G
    E --> G
    F --> G
    B --> H["Face verification (PoC)"]
    H --> I["MediaPipe FaceMesh"]
    H --> J["FaceNet embedding"]
    H --> K["Cosine similarity"]

The REST surface covers auth, events, organizers, users, and payments. The face-verification pipeline is a separate module that detects faces, builds embeddings, and scores matches.

Database Design

Eleven tables model the ticketing domain: users with OTP verification and access tokens, event organizers, event categories and classes, events, payments, and attendances.

erDiagram
    users ||--o{ personal_access_tokens : "tokens"
    users ||--o{ otps : "verifies"
    users ||--o{ eventorganizers : "runs"
    eventorganizers ||--o{ events : "hosts"
    event_categories ||--o{ event_category_association : "links"
    events ||--o{ event_category_association : "has"
    events ||--o{ event_classes : "classes"
    events ||--o{ payments : "paid"
    events ||--o{ attendances : "checked in"

    users {
        int id PK
        string name
        string email UK
        string password
        string embedding "face vec (residual)"
    }
    eventorganizers {
        int id PK
        int user_id FK
        string organization_name
    }
    event_categories {
        int id PK
        string name
    }
    events {
        int id PK
        int organizer_id FK
        string name
        datetime start_date
        datetime end_date
        string venue
    }
    event_classes {
        int id PK
        int event_id FK
        string class_name
        int price
    }
    payments {
        int id PK
        int event_id FK
        int user_id FK
        string payment_status
        string method
    }
    attendances {
        int id PK
        int event_id FK
        int user_id FK
        datetime checked_in_at
    }
    otps {
        int id PK
        int user_id FK
        string code
        datetime expires_at
    }
    personal_access_tokens {
        int id PK
        int user_id FK
        string token
    }

Face Verification Flow

The verification pipeline uses MediaPipe to detect face landmarks, FaceNet to build a 128-dimension embedding, and cosine similarity with a 0.7 threshold to decide a match. A 5-step liveness sequence (look straight, blink, turn left, turn right) was part of the flow to slow down photo spoofing. This pipeline is currently disabled in the repository, and remains as the machine-learning proof of concept from the course window.

sequenceDiagram
    participant M as Mobile client
    participant A as FastAPI
    participant P as MediaPipe FaceMesh
    participant F as FaceNet
    participant C as Cosine similarity
    participant D as PostgreSQL

    M->>A: Upload face images (liveness steps)
    A->>P: Detect face landmarks
    P-->>A: Aligned face
    A->>F: Build 128-d embedding
    A->>D: Fetch stored embeddings
    A->>C: Score against stored vectors
    C-->>A: score >= 0.7
    A-->>M: Verified or rejected

API

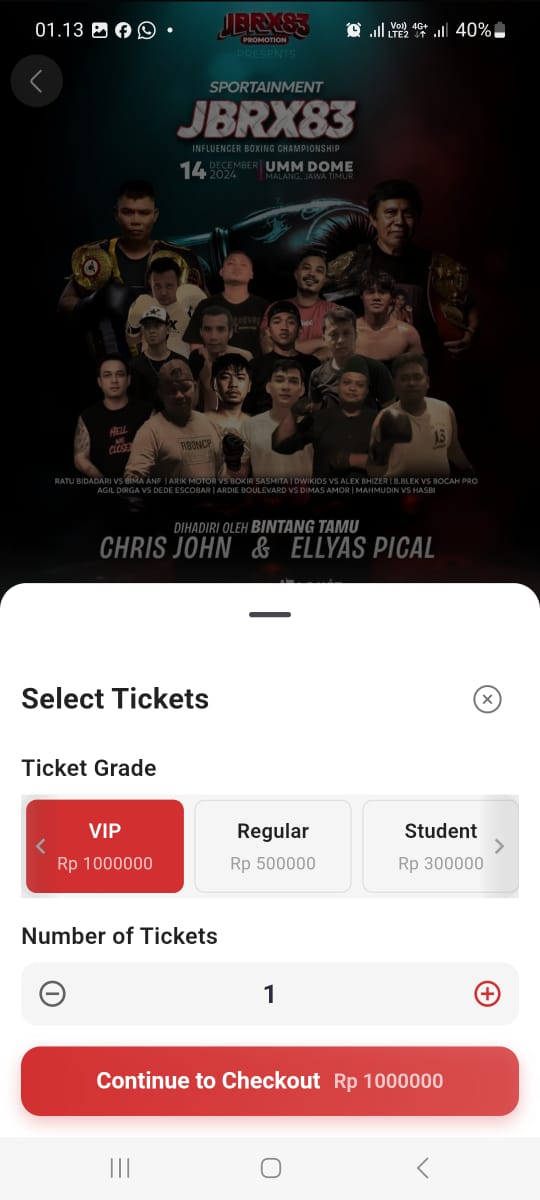

Twenty-seven live endpoints under /api/v1. Booking flow in the ticketing backend

Key Features

Event Management: Events, categories, classes, and organizer CRUD
OTP Email Auth: Signup verified by a one-time code before access
Access Tokens: Token-based auth for protected endpoints

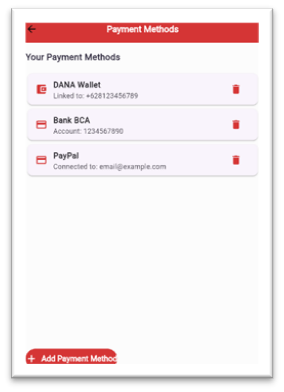

Payment Flow: Payment creation and confirmation, mocked as a verification flow without a live gateway
PostgreSQL Schema: 11 tables with Alembic migrations
Docker: Compose setup for the API and database

Technical Decisions

FastAPI for async support and a natural fit with Python ML libraries
MediaPipe FaceMesh over heavier detectors, for real-time landmark detection on device-class hardware
FaceNet embeddings with cosine similarity instead of training a recognizer from scratch
PostgreSQL after the initial MongoDB schema, for relational integrity across events, payments, and users
SQLAlchemy + Alembic for the ORM and versioned migrations
Docker for a reproducible backend and database setup

Challenges

The face-verification module was built under a course deadline and later disabled in the repo, so the pipeline is a proof of concept, not a production gate
Coordinating the API contract with a separate Flutter team required tight versioning
Migrating from MongoDB to PostgreSQL mid-project meant reworking the data layer
Varying lighting and camera angles made the liveness check the most fragile part of the pipeline

Outcome

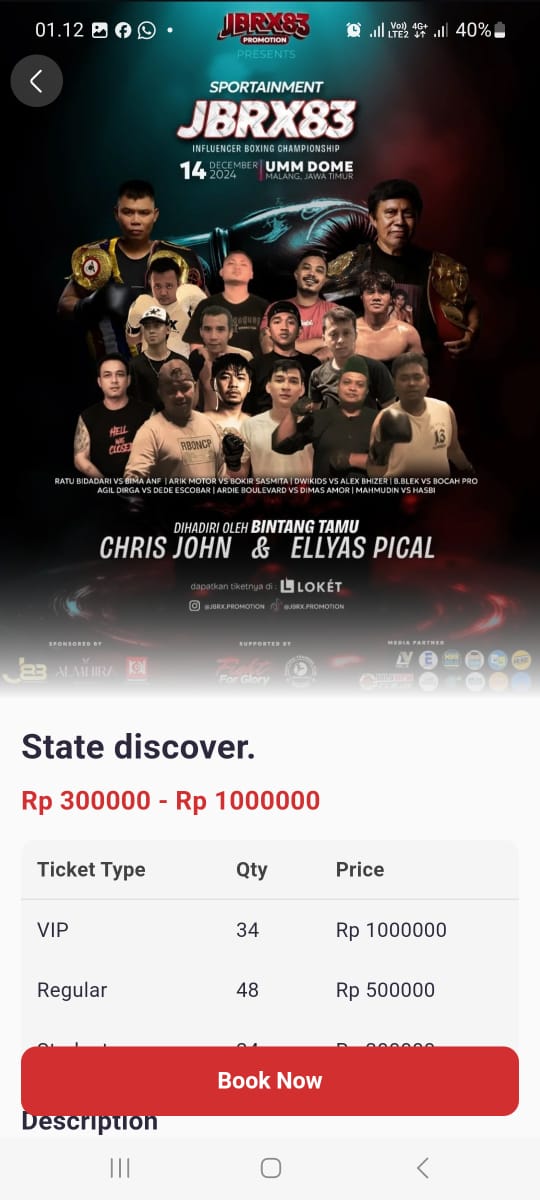

The backend delivered working event-ticketing flows with a face-verification proof of concept that used a real ML pipeline end to end. The project was the final deliverable for all three courses. The face module demonstrated the core idea, while the REST backend remained the usable surface. Mobile-facing dashboard view

Final Thoughts

Fest Ticketing taught me that a working proof of concept beats perfect theory. Pivoting from training a custom recognizer to composing MediaPipe and FaceNet delivered a working pipeline within the deadline. It also showed me how a Python AI backend and a separate mobile client meet at a clean API contract, and it sharpened my instinct for backend work over shipping the client.
